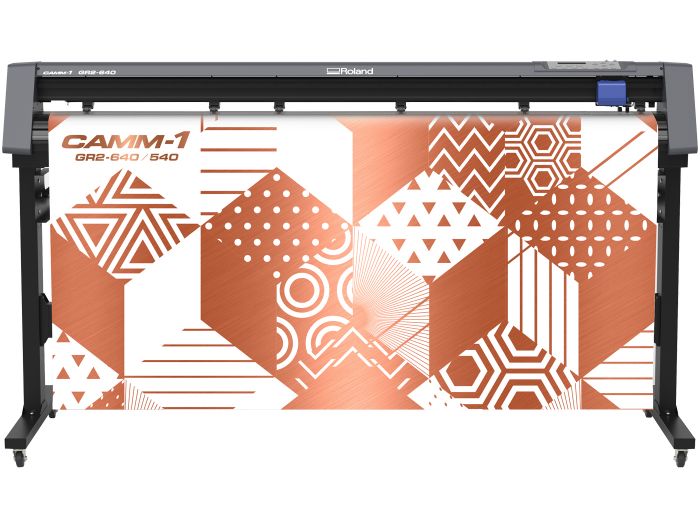

Roland Camm-1 Pro Gr2-540

Model

GR2-640

GR2-540

Drive system

Digital control servo motor

Cutting mechanism

Media-moving method

Acceptable media (*1, *2)

Width

50 mm to 1,782 mm (1.97 in. to 70.1 in.)

50 mm to 1,594 mm (1.97 in. to 62.7 in.)

Thickness

0.8 mm (31.4 mil.) or less including backing paper

Roll weight

24 kg (52.9 lb.)

20 kg (44.1 lb.)

Maximum cutting area

1,627 mm × 50,000 mm (64 in. × 1,968 in.)

1,372 mm × 50,000 mm (54 in. × 1,968 in.)

Cutting speed

30 to 1,530 mm/s (1.19 to 60 in./s)

Blade force

5 - 600 gf

Mechanical resolution

0.006 mm/step (0.236 mil./step)

Repeatability  (*3,*4,*5)

0.1 mm (3.94 mil.) or less

Distance Accuracy (*3)

Error of less than ±0.1% of distance traveled or 0.254 mm (10 mil.), whichever is greater

Software resolution

0.025 mm/step (0.98 mil./step)

Connectivity

Ethernet (automatic switching between 10BASE-T and 100BASE-TX)  |  USB 2.0 (FULL SPEED compliant)  |  RS-232C

Replot memory

32 MB

Power requirements

AC 100 to 240 V ± 10%, 50/60 Hz (Consumption approx. 110 W)

Dimensions / Weight

1,982 mm × 756 mm × 1,127 mm (78.1 in. × 30 in. × 44.4 in.) / 69 kg (153 lb.)

1,711 mm × 651 mm × 1,111 mm (68 in. × 25.7 in. × 44 in.) / 60 kg (133 lb.)

Included items

USB cable, cutting pad, safe blade, dedicated stand, tweezers, user's manual, etc.
