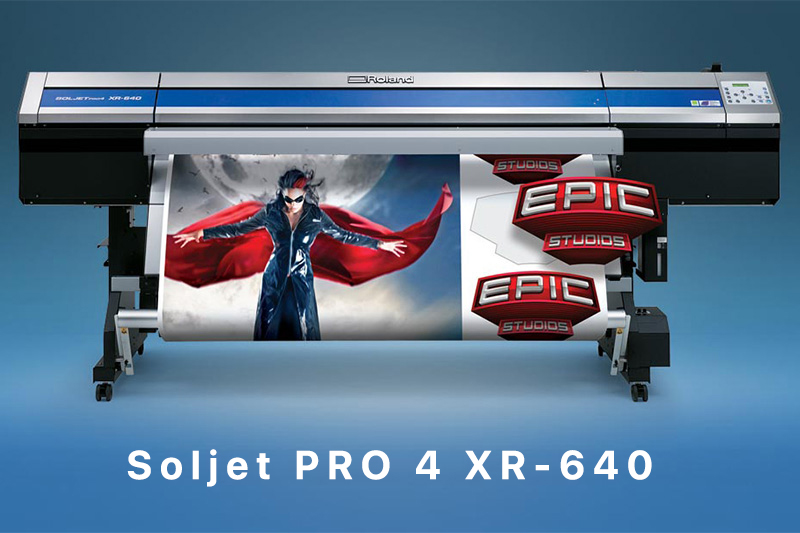

Specifications XR-640
Printing technology Dual Head Piezoelectric Inkjet
Media
Width 259 to 1625 mm
Thickness Maximum 1.0 mm with liner
Roll diameter Maximum 210 mm
Roll weight Maximum 40 kg
Core diameter 76.2 mm or 50.8 mm
Printing Width Max. 1600 mm
Ink cartridges
Type Roland Eco-Sol MAX 2 Ink
Capacity 440 cc CMYKLcLmLk - 220 cc Metallic and White
Colors 9 Colors(cyan, magenta, yellow, black, light cyan, light magenta, light black, metallic, white)
Print resolution Dots per in Maximum 1,440 dpi
Print Modes
Quality / Resolution Pass Count / Speed
Billboard (Banner) 360x720 1 / 49.1 m2/h
High Speed (Banner)
540x360 2 / 32.7 m2/h
540x360 (V) 3 / 21.6 m2/h
Standard (Banner)
360x720 3 / 17.0 m2/hr
540x360 5 / 10.2 m2/hr
High Quality (Banner) 720x1440 10 / 4.6 m2/h
High Speed (Vinyl) 540x 360 3 / 21.6 m2/h
Standard (Vinyl)
360x720 4 / 15.4 m2/h
540x720 6 / 10.2 m2/h
High Quality (Vinyl) 720x1440 10 / 4.5 m2/h
Connectivity Ethernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving function Automatic sleep feature
Environmental
Power on Temperature: 15 to 32°C [20°C or more recommended],
Humidity: 35 to 80% RH (no condensing)
Power off Temperature: 5 to 40°C, humidity: 20 to 80% RH (no condensation)
Dimensions (with stand) 2948[W] x 1214[D] x 1260[H] mm)
Weight (with stand) 205 kg
Included items XR-640 stand, cleaning liquid cartridges, power cord, media clamps, blade, blade holder, replacement blade for sheet cutter, Roland VersaWorks RIP Software, cleaning kit, manual, etc.
