LEJ-640

Produkt / Printer / UV-printrar /

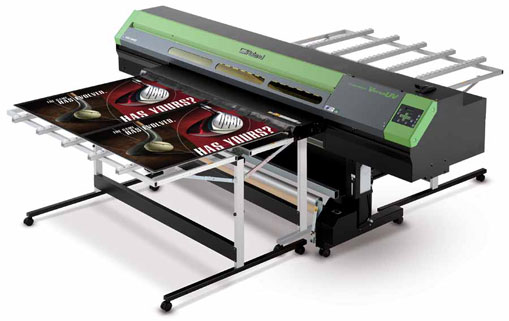

Versa UV LEJ-640

Var Rolands största printer med deras prisvinnande UV-LED teknik

Välj till
Roland VersaUV LEJ-640
Bläck EUV4 CMYK+Wh+Gl+Primer
BOFA Luftreningssystemet vid printern
Två rullbord ett framför och ett bakom printern
Frakt, Installtion och Utbildning


LEJ-640 printar material upp till 1615 mm med CMYK + vitt och transparent bläck. Använd transparent bläck för en matt eller blank yta eller för att skapa struktur som kolfibrer- eller träliknande tryck.

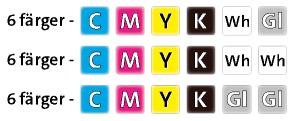

Välj en av följande konfigurationer:

resized__300x121_UV__f__rg_komb



Model LEJ-640
Printing technology Piezoelectric inkjet
Media Width Roll media : 210 to 1625 mm (8.3 to 64 in.)
Rigid media, cut media : 250 to 1625 mm (9.9 to 64 in.)
Thickness Roll media : Max. 1.0 mm (39 mil) with liner
Rigid media, cut media : Max. 13 mm (0.51 in.)
Weight Roll media : Max. 40 kg (88 lb)
Rigid media, cut media : Max. 12 kg (26 lb)
Roll outer diameter Max. 210 mm (8.3 in.)
Core diameter*1 76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing width*2 Max. 1615 mm (63.6 in.)
Ink Type ECO-UV INK / ECO-UV S INK
Capacity 220 cc / 500 cc
Colours ECO-UV INK: 6 colours (Cyan, Magenta, Yellow, Black, White, Gloss)
ECO-UV S INK: 5 colours (Cyan, Magenta, Yellow, Black, White)
Print resolution (dots per inch) Max. 1440 dpi
Distance accuracy*3 Error of less than ±0.3% of distance travelled, or ±0.3 mm, whichever is greater
Media take-up system Roll outer diameter allowing take-up Max. 210mm (8.3in.)
Weight allowing take-up Max. 40kg (88lb)
Connectivity Ethernet (10 BASE-T/100 BASE-TX, automatic switching)
Power-saving function Automatic sleep feature
Power requirements AC 100 to 240 V ± 10%, 5.7A, 50/60 Hz
Power consumption During operation 500 W
Standby mode 15.2 W
Acoustic noise level During operation 64 dB (A) or less
Sleep mode 40 dB (A) or less
Environment Power on*4 Temperature: 20 to 32°C (68 to 90°F) [22°C (72°F) or higher recommended] , humidity: 35 to 80% RH (no condensation)
Power off Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80% RH (no condensation)
Dimensions (with stand) With table unit *5 3184 (W) × 3658 (D) × 1281 (H) mm (126 × 145 × 51 in.]
Without table unit *5 3184 (W) × 836 (D) × 1281 (H) mm (126 × 33 × 51 in.)
Weight (with stand) With table unit *5 316 kg (697 lb)
Without table unit *5 240 kg (530 lb)
Included items Roland VersaWorks Dual RIP Software, stand, table unit (RU-640 and MB-640), power cable, media clamps, replacement blade for separating knife, User's Manual, etc.

*1 The media holder of this machine is exclusive use for the media of paper tube (core) inner diameter 76.2 mm (3 in.). To use 50.8 mm (2 in.) media, the optional media flanges are required.
*2 The length of printing is subject to the limitations of the program.
*3 Media type: Media specified by Roland DG Corp. Temperature: 25°C (77°F), humidity: 50%RH. Roll media must be loaded correctly. Excluding expansion/contraction of the media. All correction or adjustment function of this machine has been made properly. The grit rollers are positioned correctly on top of the media. With Roland PET film, print travel: 1 m. When not using table unit.
*4 Operating environment.
*5 The ""table unit"" indicates RU-640 and MB-640.
Specifications, designs and dimensions listed may be subject to change without notice.

Roland VersaWorks Dual System Requirements
Operating system  Windows® 10 (32/64 bit), Windows® 8.1 (32/64 bit), Windows® 7 Ultimate / Professional (32/64 bit)
Hard-disk file system NTFS format
CPU Intel® Core™2 Duo, 2.0 GHz or faster recommended
RAM 2 GB or more recommended
Video card and monitor A resolution of 1280 x 1024 or more recommended
Free hard-disk space 40 GB or more recommended
Ethernet Connection  100 mbps
Other Internet connection recommended

Roland VersaWorks Dual is a 32-bit application and therefore runs in WOW64 (Windows-on-Windows 64) when running on 64-bit versions of Windows operating systems.

Artikelnr: VersaUV
Datablad: [ Länk ]


Pris: 422.995,00

Lägg till i varukorgen
Bilder
>
>
Tillverkarinfo

Roland


Sedan 1981... Roland DG North Europe A/S är ett dotterbolag till Roland DG Corporation från Japan. Roland DG Corporation tillverkar storformatsskrivare, skärplottrar, integrerade printrar/skärplottrar, gravyr- frÃäsmaskiner, laser scannrar och metall printrar. Dessa produkter används framför allt i den grafiska industrin. Folie & Papper är stolt Auktoriserad återförsäljare och Servicecenter för Roland DG produkter i Sverige med tekniker som kan titulera sig världens bästa.

Folie & Papper är din auktoriserade återförsäljare och servicecenter av Roland DG skärplotters och printers i Sverige sedan 2005.
Utforska vårt breda sortiment och beställ online idag!"

Köp skärplotter och printers från Roland DG i Sverige | Folie & Papper



http://www.rolanddgn.com

Tillbehör

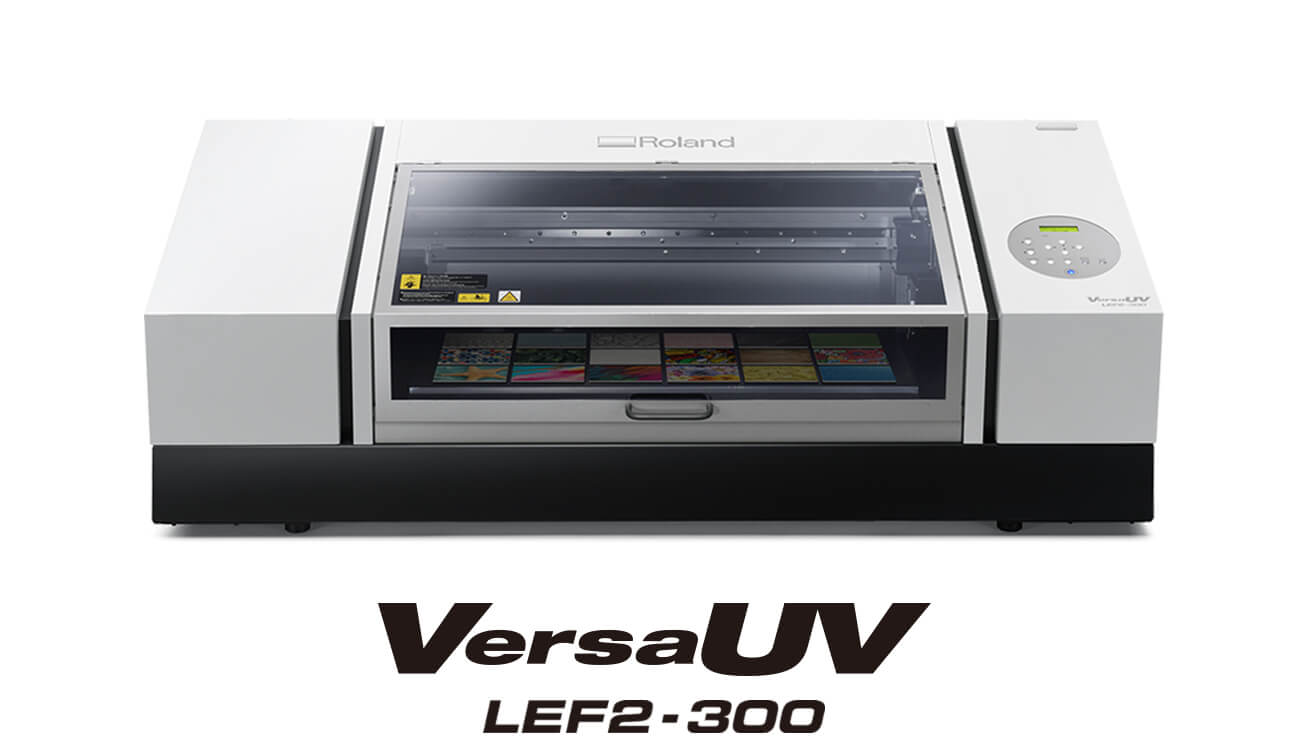

Roland VersaUV LEF2-300
