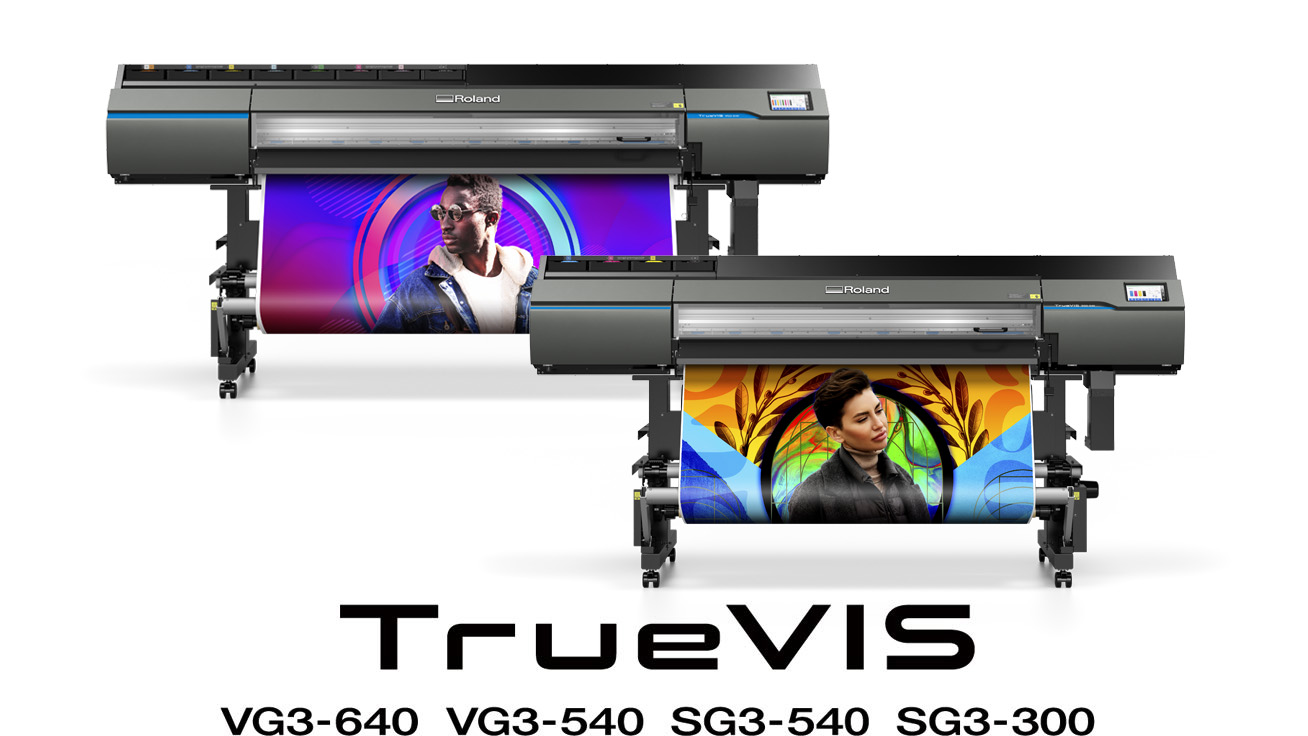

Roland TrueVIS VG3-640

Roland TrueVIS, vår storsäljande allt-i-ett lösning som har utvecklat tusentalt producenter världen över, tar nu ett stort steg in i vår digitala tidsålder. Öka er omsättning och ligg steget före med spjutspetens inom visuell kommunikation. Rolands Print/Cut maskiner är enkla, användarvänliga och har precis allt man begär av en modern storformatsskrivare

Tredje generationen TrueVIS printers har premiär på SD UK i mars och visas på Fespa i Berlin i maj.

Vi räknar med att kunna visa maskinerna i slutet på mars i vårt Showroom i Göteborg och börja leverera maskiner i maj.

Intuitive touch screen control panel
Integrated take-up unit
Avery Dennison™ ICS™ and GREENGUARD Gold certified
Prints ready to laminate and apply in 6 hours for same day installation
VersaWorks 6 RIP software included

		VG3-640	VG3-540
Printing method		Piezo ink-jet method
Media	Width	335 to 1,625 mm (13.2 to 64 in.)	295 to 1,371 mm (11.7 to 54 in.)
	Thickness	Max. 1.0 mm (39.3 mil) with liner, for printing
		Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
	Roll outer diameter	Max. 250 mm (9.8 in.)
	Roll weight	Max. 45 kg (99 lb.)	Max. 35 kg (77 lb.)
	Core diameter	76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing/cutting width (*1)		Max. 1,600 mm (62.9 in.)	Max. 1,346 mm (52.9 in.)
Ink	Type	TrueVIS INK 500 ml pouch (only white 250 ml)
	Colors	Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and white)
		Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and orange)
		Eight colors (cyan, magenta, yellow, black, light black, orange, green and white)
		Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, orange, and green)
		Seven colors (cyan, magenta, yellow, black, light black, orange, and green)
		Four colors (cyan, magenta, yellow, and black)
Printing resolution (dots per inch)		Max. 1,200 dpi
Cutting speed		10 to 300 mm/s (0.39 to 11.8 in/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
	Offset	0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting)		0.025 mm/step (0.98 mil/step)
Media heating system (*3)		Print heater set temperature: 30 to 45 °C (86 to 113 °F)
		Dryer set temperature: 30 to 55 °C (86 to 131 °F)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Power requirement		100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A

Power consumption	During operation	Approx. 1,090 W
	Sleep mode	Approx. 50 W
Acoustic noise level	During operation	63 dB (A) or less
	During standby	53 dB (A) or less
Dimensions (Width x Depth x Height)		2,886 mm × 748 mm × 1,320 mm (113.7 in. x 29.5 in. x 52.0 in.)	2,632 mm × 748 mm × 1,320 mm (103.7 in. x 29.5 in. x 52.0 in.)
Weight		203 kg (448 lb.)	189 kg (417 lb.)
Environment	During operation	Temperature: 20 to 32 °C (68 to 89.6 °F), humidity: 35 to 80 % RH (no condensation)
	Not operating	Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)
Included items		Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User's Manual, Software(VersaWorks, Roland DG Connect), etc.
	*1	The length of printing or cutting is subject to the limitations of the program.
	*2	• 500 gf is the maximum instantaneous blade force.
		• The blade force must be adjusted according to details such as the media thickness.
	*3	• Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
		• Depending on the ambient temperature and media width, the preset temperature may fail to
